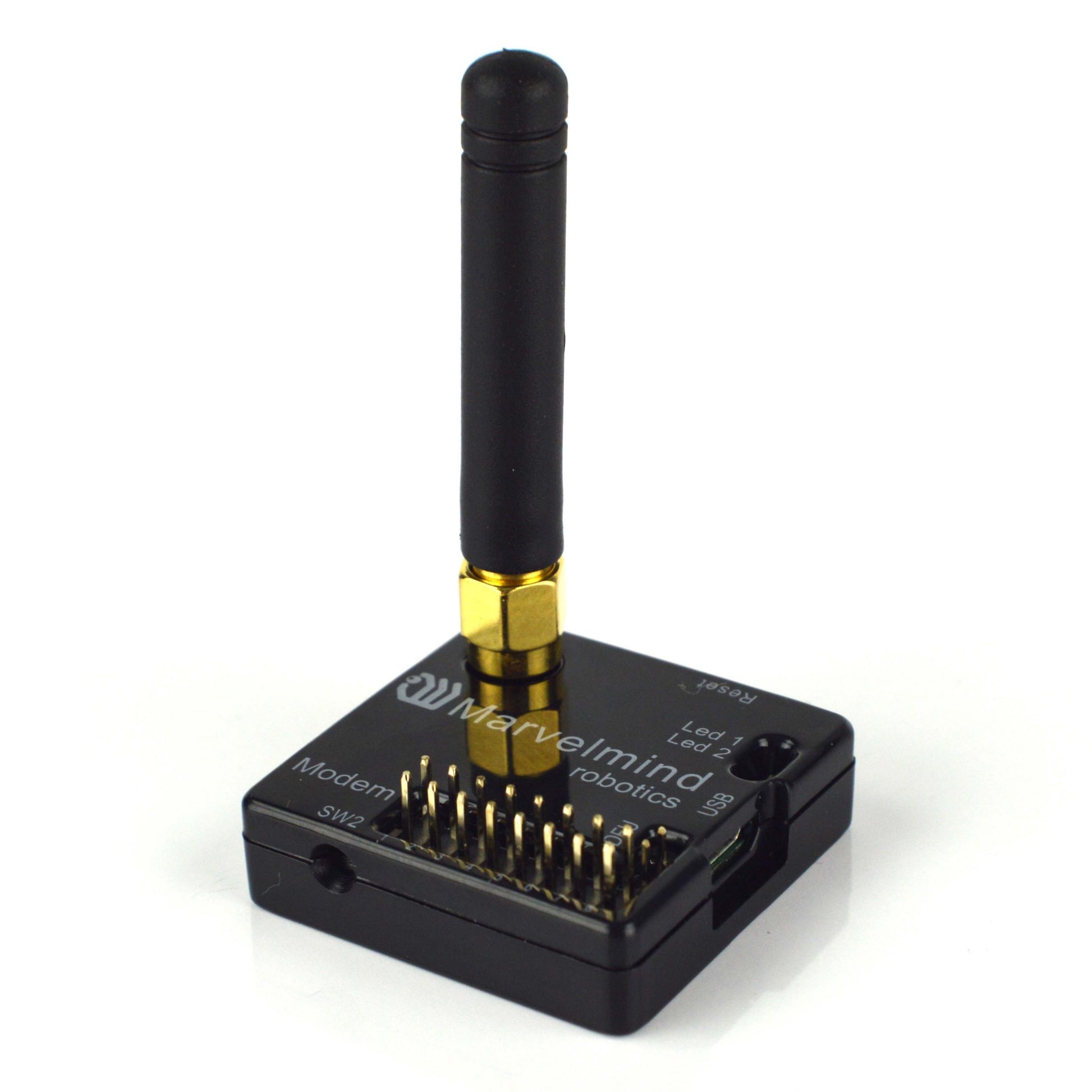

Modem HW v5.1 by Marvelmind

4.099.000 VND

Sale Sold out

Modem is a central controller of the system and must be always active, when the system is running
Modem’s HW supports up to 250 beacons out of the box – mobile + stationary – in any combination. More – on request
Modem is used to set up the system, monitor it, and interact with the Dashboard
Modem can be placed anywhere within the radio coverage for permanent radio connection with all beacons (star architecture) — usually, in the radius of up to 100 meters with antennas from the Starter Set
Radio coverage can be extended farther to a few hundred meters by using a radio profile with lower bitrate, for example, 38kbps and a full-size antenna on both ends (modem & beacon). The option shows up to 400+ m range in ideal conditions
The radio range can be even more with directional antennas
There is currently only 915/868MHz of modem version available for Modem v5.1. The 433MHz version can be produced for 100+ pcs order within 5 weeks
A proprietary radio protocol used for communication and synchronization
More on open modem interfaces
