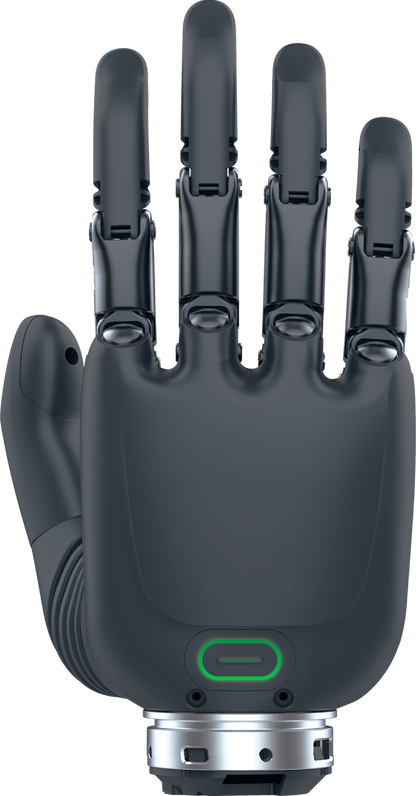

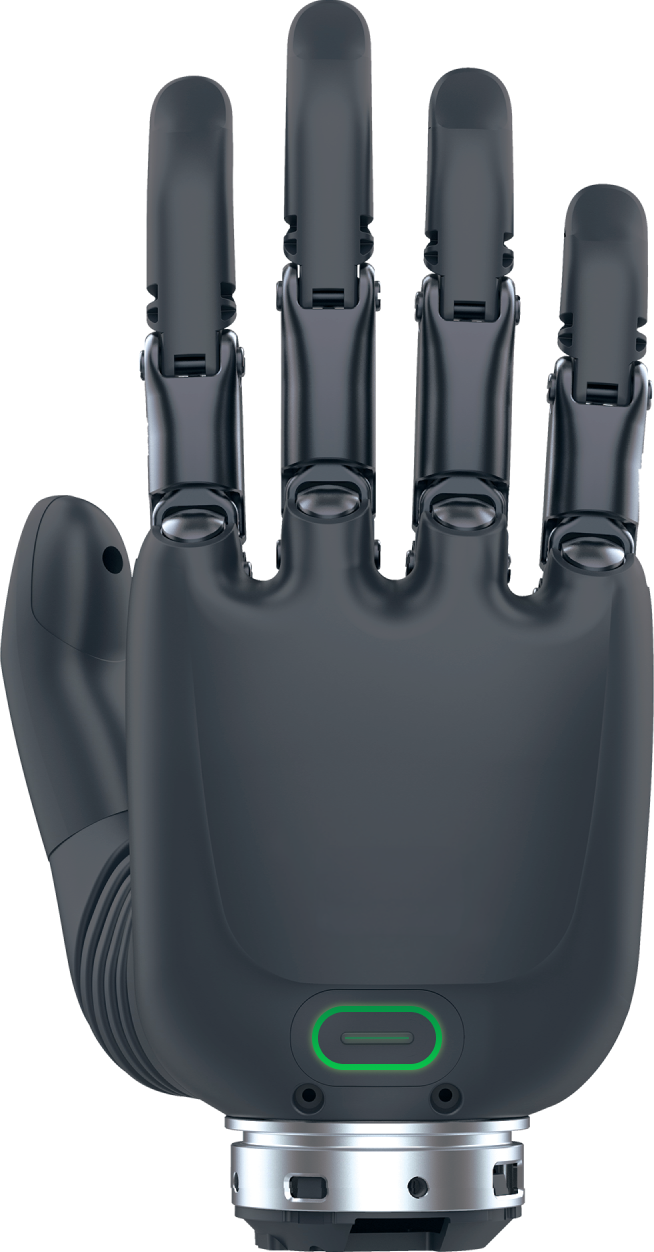

BrainCo Revo 2 - Intelligent Dexterous Bionic Hand

BrainCo Smart Bionic Dexterous Hand Revo 2 is an upgraded iteration based on the mature technologies of the prosthetic hand and the Revo 1 dexterous hand. It continues the previous generation’s advantages of stability and high performance.

The Revo 2 dexterous hand is equipped with 6 built-in motors, has 6 active joints, and provides a total of 11 degrees of freedom. The hand weighs 383g, measures 160mm, offers an active gripping force of 50N, and can handle a load of 20kg with a lightweight and compact design, while maintaining a bionic and aesthetic appearance.

Revo 2 can be equipped with multi-dimensional tactile sensing, boasts industry-leading mass production stability, and is highly reliable in quality. It supports multiple communication protocols including RS-485, CANfd, and EtherCAT, with a maximum communication frequency of 1kHz, enabling high-speed real-time communication.

It supports an SDK, is compatible with Linux, Windows, and ROS, and allows for high-speed secondary development. Features include:

• Custom gestures
• Multiple safety protections
• Servo control algorithms
• Tactile adaptive grasping
• OTA (Over-the-Air) online upgrades
