KITXMC72EVKTOBO1 Infineon Technologies

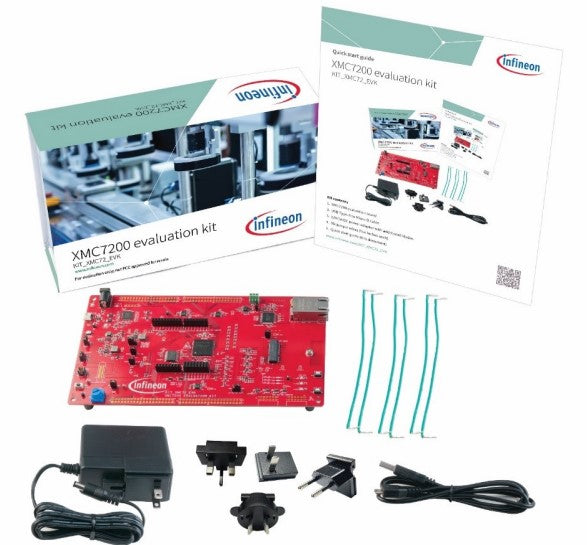

The XMC7200 evaluation kit enables you to evaluate and develop your applications using the XMC7200D microcontroller (hereafter called “XMC7200D”). When the intention is to use this board to implement industrial communication protocols in XMC7000, refer to AN241328 - Getting started with PROFINET and Ethernet_IP on the XMC7200 MCU in ModusToolbox™.

XMC7200D is designed for industrial applications. XMC7200D is a true programmable embedded system-onchip, integrating up to two 350-MHz Arm® Cortex® -M7 as the primary application processors, 100-MHz Arm® Cortex® -M0+ that supports low-power operations, up to 8-MB flash and 1-MB SRAM, Gigabit Ethernet, Controller Area Network Flexible Data-Rate (CAN FD), Secure Digital Host Controller (SDHC) supporting SD/SDIO/eMMC interfaces, programmable analog and digital peripherals that allow faster time-to-market.

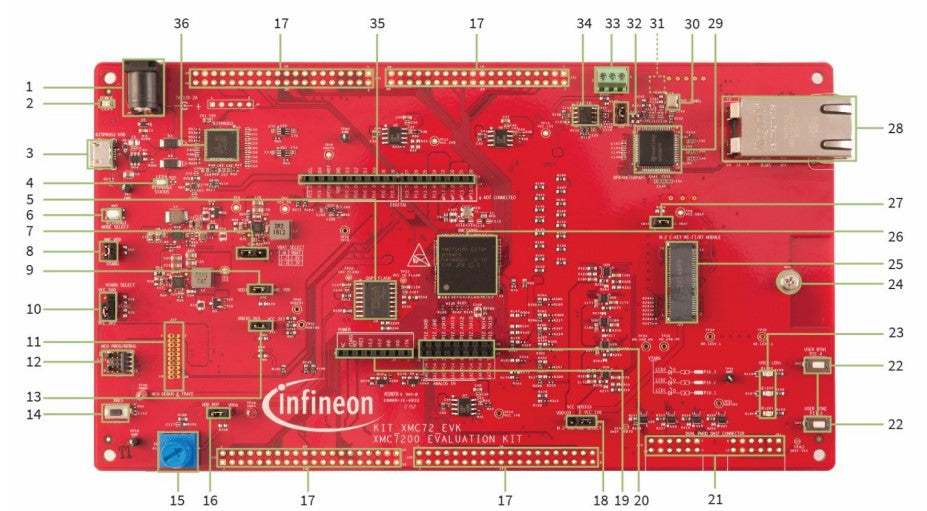

The evaluation board has a M.2 interface connector for interfacing radio modules-based on AIROC™ Wi-Fi & Bluetooth® combos1), SMIF dual header compatible with Digilent Pmod for interfacing HYPERBUS™ memories1) , and headers compatible with Arduino for interfacing Arduino shields. In addition, the board features an onboard programmer/debugger (KitProg3), a 512-Mbit QSPI NOR flash, CAN FD transceiver, Gigabit Ethernet PHY transceiver with RJ45 connector interface, a micro-B connector for USB device interface, three user LEDs, one potentiometer, and two push buttons. The board supports operating voltages from 3.3 V to 5.0 V for XMC7200D.

ModusToolbox™ software is used to develop and debug the XMC7200D projects. ModusToolbox™ software is a set of tools that enable you to integrate these devices into your existing development methodology.

Specifications

• Manufacturer name: Infineon Technologies
• Product name: KITXMC72EVKTOBO1
• Product classification: Microcontrollers, DSP Evaluation Development Board Kit
• Other names: 448-KITXMC72EVKTOBO1 | 448-KIT_XMC72_EVK | KIT_XMC72_EVK | SP005738295 | 448-KIT_XMC72_EVK-ND
• Mounting Type: Fixed
• Series name: XMC7000
